The Ring Floodlight Camera is one of Ring’s most versatile security cameras. With its adjustable mounting options, this camera can be oriented in many ways to meet your needs.

In this guide, we’ll cover the various ways to mount your Ring Floodlight, including upside-down and sideways orientations to capture different areas.

We’ll also discuss mounting it on ceilings and eaves, and provide tips on adjusting the camera angle and keeping connections dry. Whether you need a simple vertical mount or something more complex, this guide will help you make the most of your Ring Floodlight security system.

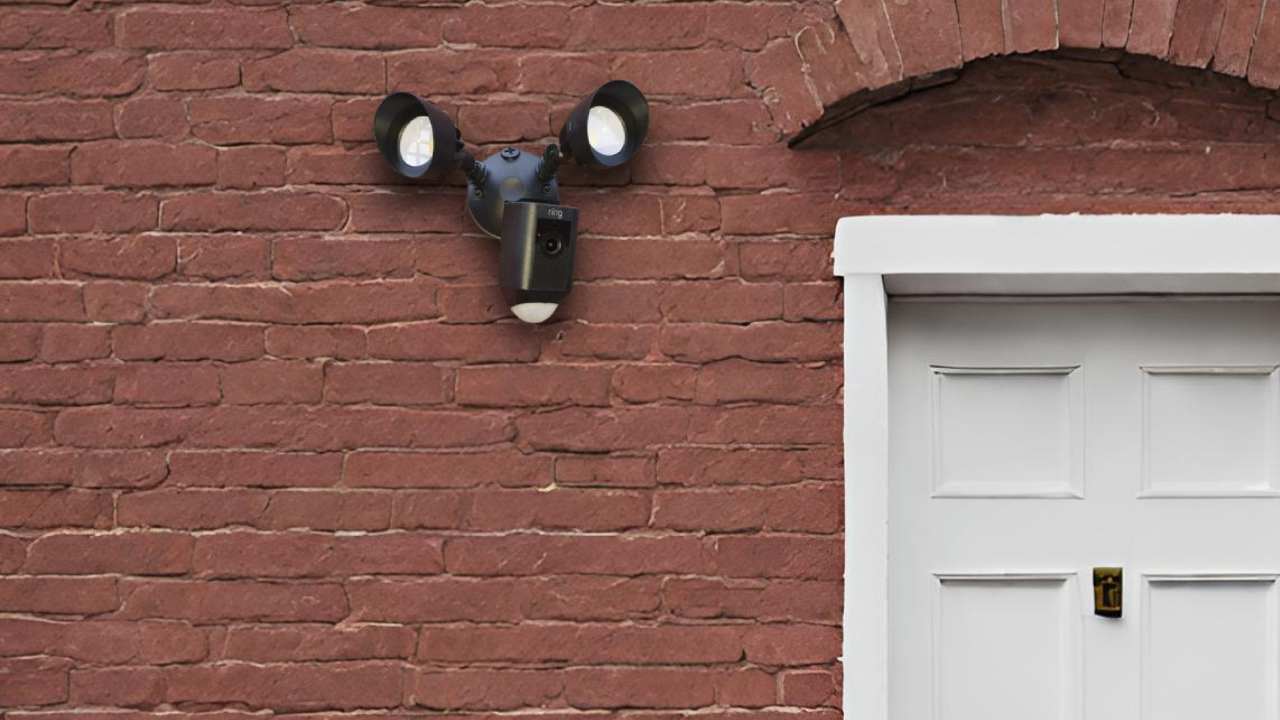

Mount A Ring Floodlight Camera: Regular Way

The Ring Floodlight is designed to mount to a vertical wall in the standard configuration. To start, you’ll need to select an outdoor location with access to the necessary wiring to power the light. You can either connect to an existing exterior lighting fixture or have an electrician run new wires if needed.

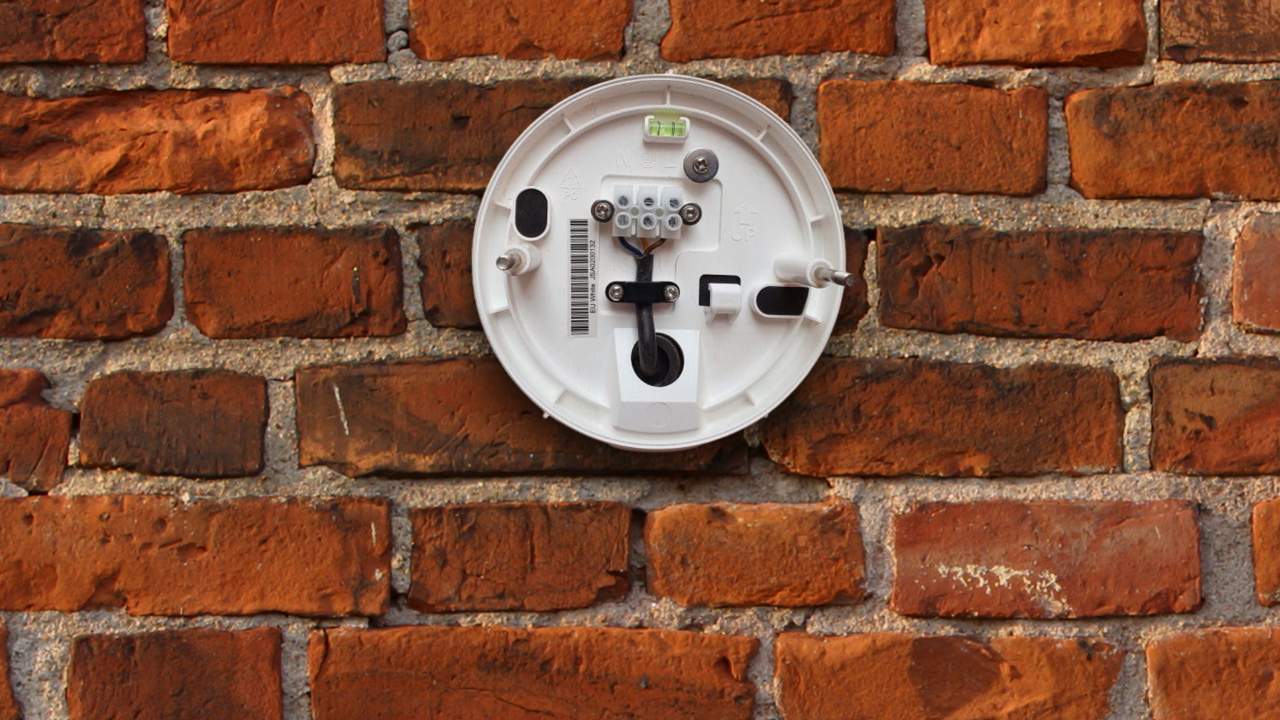

Once wired up, attach the mounting bracket to the wall using the included screws.

For masonry walls, use appropriate anchors. Make sure the bracket is level, and connect the video and power cables coming out of the wall to the ports on the back of the bracket.

Finally, align the front half of the Ring Floodlight containing the light heads and camera with the mounting plate. Insert and tighten the thumb screws to secure the two halves together.

Adjust the angle of the camera and lights as needed – the ball joint where the camera mounts makes this positioning very flexible. Your Ring Floodlight will now have the optimal vertical mounting angle to monitor your yard.

Mount A Ring Floodlight Camera: Upside Down/ Angle

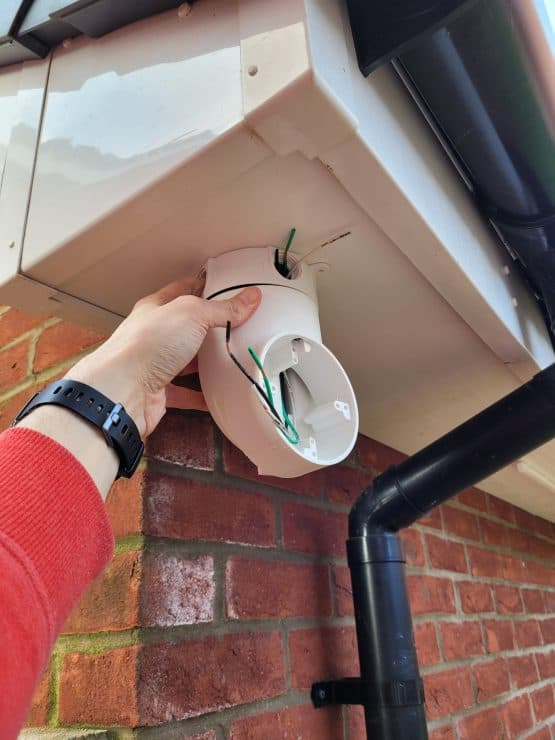

While the standard vertical mounting works for most setups, the Ring Floodlight has versatile mounting options to meet different needs. With some planning and effort, you can install it on angled surfaces like eaves and even completely upside down on a ceiling.

When mounting upside down, carefully consider the wiring and weatherproofing requirements. You’ll likely need to run new wires and should seal connections to prevent water damage.

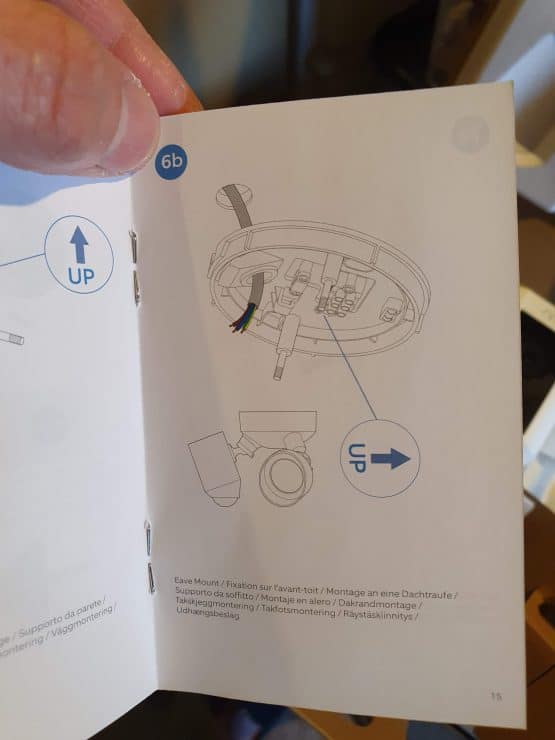

Make sure to insert all rubber grommets properly, and use silicone caulk if needed. A third-party mount like the adjustable metal bracket for under-eave mounting sold on Etsy can make this process easier and more secure.

The biggest challenge with angled mounting is adjusting the camera angle to ensure optimal motion detection and video coverage. For simple upside-down installations, you can open the ball joint and rotate the camera 180 degrees. For maximum flexibility to point the camera in any direction, consider modifications like adding a recess to the ball socket to extend the joint’s range of motion.

You also have options like the Ring Spotlight Cam Pro and Ring Spotlight Cam Plus for specific areas that are difficult to access with the large Floodlight Cam. Overall, taking the time to mount your Ring Floodlight creatively will provide security over more of your property.

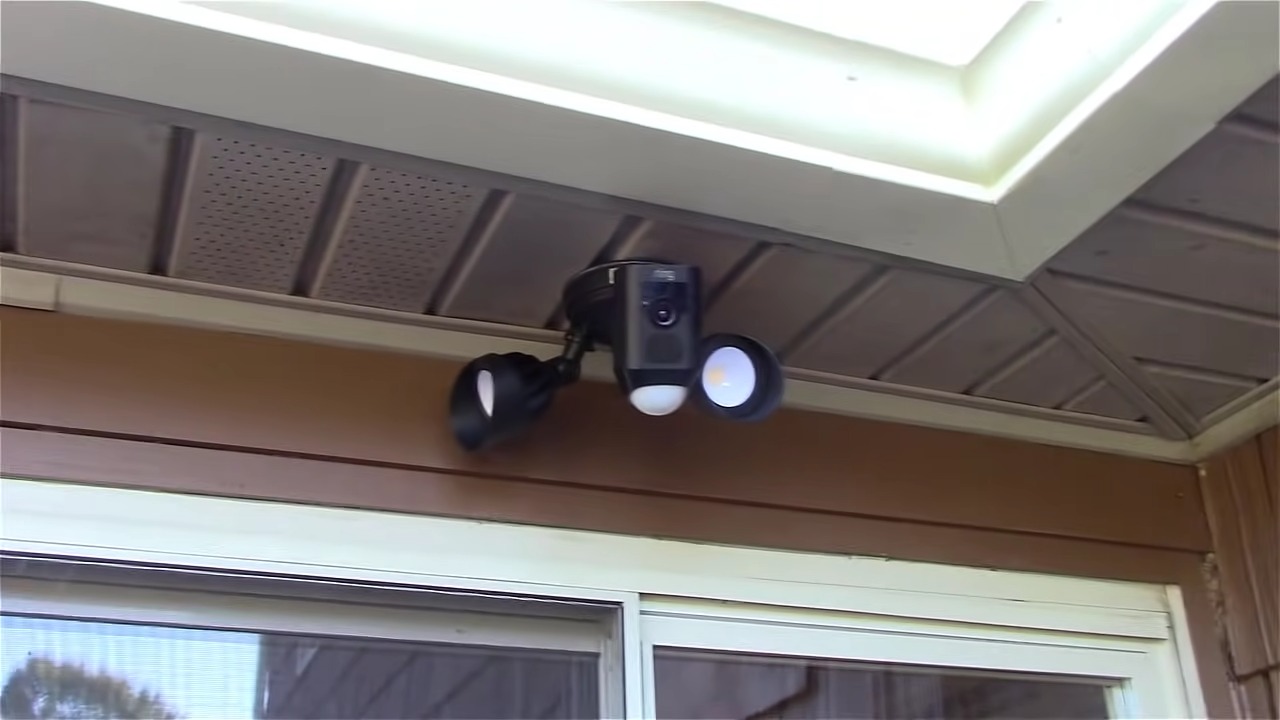

Mount A Ring Floodlight Camera: On Ceiling

Installing your Ring Floodlight on a ceiling takes a bit more planning but can be worth it to provide light and security in covered areas. Start by picking an appropriate location with a solid ceiling surface like wood or masonry.

The camera itself is nearly 1.8 Kg, so avoid any thin ceiling and use strong bolts to safely hold the camera’s weight.

You will also need to have wiring routed to the ceiling area you choose before proceeding with the mount. An electrician can help run the necessary video/power cables into that area if needed.

Depending on whether previous lights or fixtures were present, you may need to cut into the ceiling to bring the wiring out at the right point.

With wiring set up and a suitable mounting point picked out, transform your Ring Floodlight into a ceiling fixture by flipping the camera upside down in the ball joint and securing it facing the correct direction.

Consider using the DIY modifications to the ball socket as outlined earlier to get the maximum camera angle adjustability if required. Make sure any wiring connections are well insulated from moisture.

Though complex, a ceiling-mounted Floodlight Camera gives the flexibility to position both light and security perfectly on covered porches, garage entrances, and more. Proper setup is key, but the benefits are worth it.

How To Get The Right Camera Angle

One of the biggest challenges when utilizing the Ring Floodlight flexibility to mount upside down, on a ceiling, or in other unconventional orientations is getting the right angle for the camera and motion sensor.

By default, the ball joint only allows adjusting the camera in a limited front-facing range of motion. So when mounted upside down, the motion sensor and camera end up pointing upward at a sharp angle, greatly reducing functionality.

Luckily, there are a few methods to remedy this:

• For basic ceiling mounts, rotate the entire light 180 degrees in the ball joint so the camera faces the correct way. Just ensure wires have enough slack first!

• For maximum flexibility, modify the ball joint by grinding an additional deeper socket into the plastic on the opposite side. This allows flipping the camera to fully rear-facing.
• Consider getting a specialized third-party mount for the Floodlight designed for angled/inverted installations. These offer a full range of motion without modifications.

Take the time to carefully adjust the angle during initial mounting to ensure the perfect field of view and maximum motion sensor coverage later on. Your customized Floodlight Cam installation will provide security you can rely on by following these tips

Wrapping Up

Getting creative with your Ring Floodlight mounting unlocks functionality options to enhance security for your unique needs.

Whether tailored ceiling placements or completely upside-down installations, take advantage of the adjustable ball joint and customization-friendly design. Consider weatherproofing, electrical, optimal camera angles, and more during your setup.

With the right approach and planning, this light/camera combo can go in virtually any location for ideal outdoor analytics and protection through lighting, video, and motion alerts.

Frequently Asked Questions (FAQ)

Can I mount my Ring Floodlight upside down?

Ans – Yes, the Floodlight Cam can be mounted upside down or sideways using the ball joint. Ensure wiring has slack and rotate camera in socket. Consider weatherproofing.

What mounting options work best for installing under eaves?

Ans – Specialized third-party mounts designed for eave mounting work great. Ensure the mount keeps connections dry.

How do I adjust the camera angle if my Floodlight is mounted horizontally?

Ans – Rotate camera in ball joint, modify the joint to be double-sided, or use a mount made for horizontal orientations.

Is it difficult to mount the Floodlight on my ceiling?

Ans – Yes, ceiling mounts are complex – consider wiring, supports to handle the weight, and adjusting the camera angle. Proper planning is a must.

Can I still use the mounting bracket that came with my Floodlight?

Ans – The included bracket works for basic inverted/horizontal mounts. For best results, use a purpose-built third-party mount.
